37MAXDATA SR1202 M1 – StorView

RAID User Guide

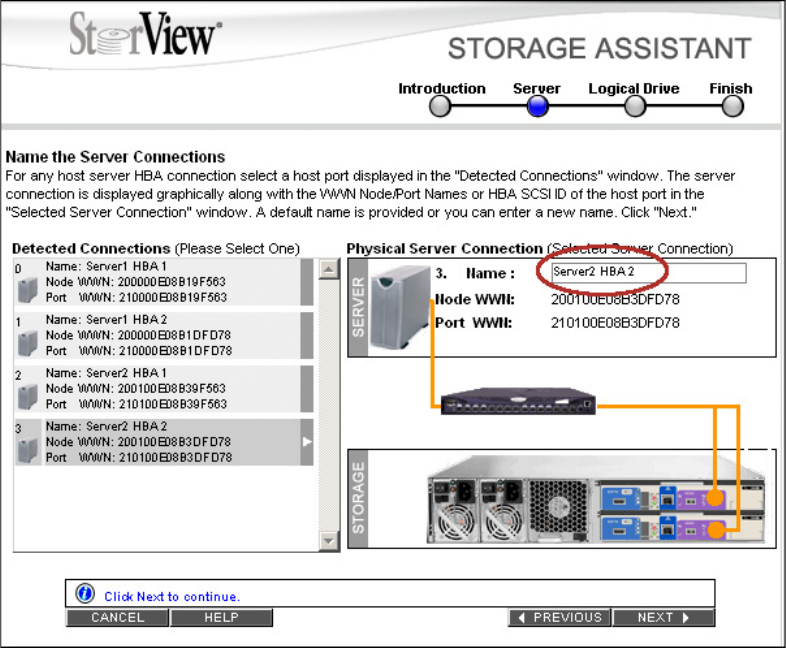

Figure 20. Storage Assistant - Server Screen

5. Click the NEXT button. If you have mixed SAS and SATA disk drives in your enclosure, the

following screen will appear. If you do not have mixed drives proceed to the Server page, skip

to step 6.

 NOTE

You cannot mix SAS and SATA drive types. You must create the logical drives from arrays comprised

of the same type of drives then return back to this page and select the other drive type and create

additional logical drive.
