40 Storage Assistant

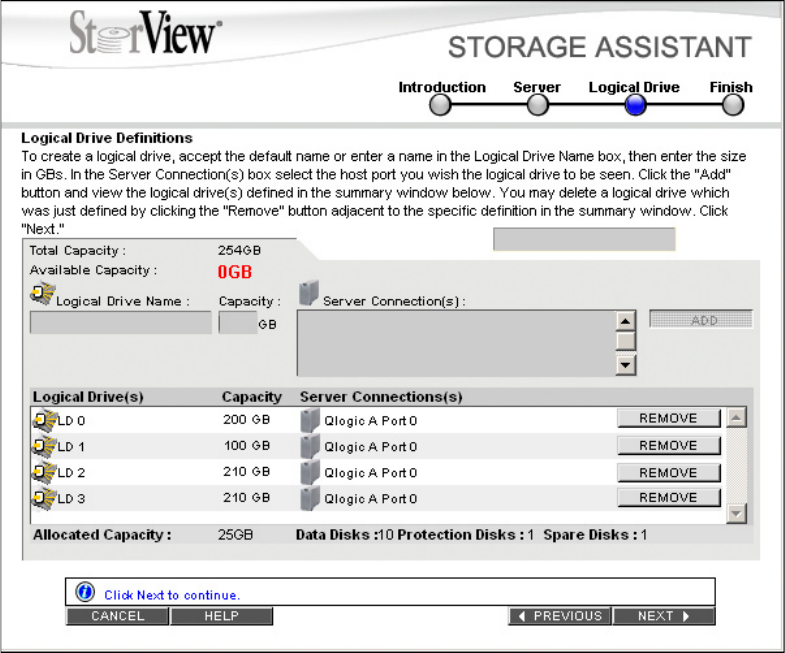

Figure 24. Storage Assistant - Logical Drive Screen

If you decide that a Logical Drive you added is not desired, you may remove it from the list by clicking

the REMOVE button next to the Logical Drive name in the summary window.

If you have used up all the available capacity, the fields will gray out and the available capacity will

display “0 GB” in red.

9. You are presented with a summary of your selections. Click the APPLY button.

The Storage Assistant will begin configuring the storage solution.
