38 Storage Assistant

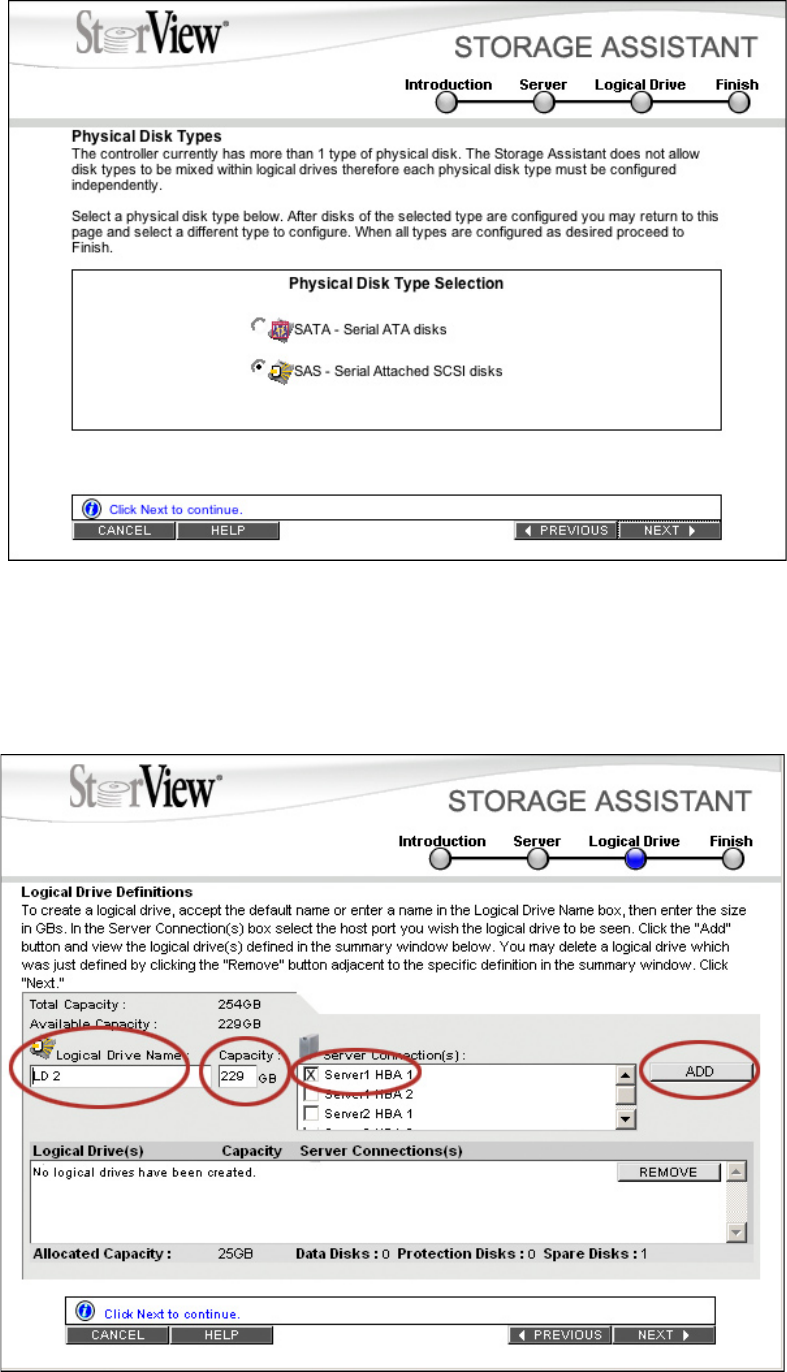

Figure 21. Storage Assistant - Physical Disk Type Screen

After you have selected a specific drive type and created the logical drive(s) with those disks, you can

then click the PREVIOUS button to create another logical drive using the drive type not yet selected.

Or, you can alternate back and forth between selecting a disk type and creating logical drive(s).

6. Enter a name for the logical drive or use the default name.

Figure 22. Storage Assistant - Logical Drive Screen
